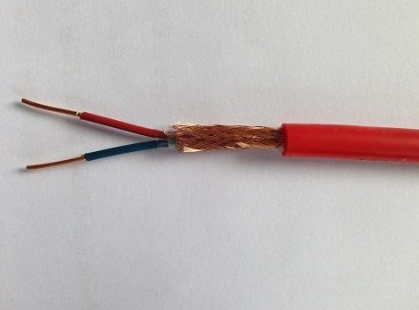

耐高溫補償導線JAKCH-GPG-2*2.5
一、產品特點及用途
耐高溫補償導線JAKCH-GPG-2*2.5適用于高溫
二、產品執行標準：耐高溫補償導線JAKCH-GPG-2*2.5 執行GB/T4989-94.
三、產品型號及M稱
|
型 號 |
M 稱 |
|
JAKCH-GG |
硅橡膠J緣及護套耐熱用KC型補償導線(電纜) |
|
JAKCH-GPG |
硅橡膠鞋J緣及護套對絞對屏蔽耐熱用KC型補償電纜(電線) |
|
JAKCH-GPGP |
硅橡膠J緣及護套對絞對屏總屏蔽耐熱用KC型補償電纜 |
|
JAKCH-FG |
氟塑料J緣硅橡膠護套耐熱用KC型補償導線(電纜) |
|
JAKCH-FPG |
氟塑料J緣硅橡膠護套對絞屏蔽耐熱用KC型補償導線(電纜) |
|
JAKCH-FPGP |
氟塑料J緣硅橡膠護套對絞對屏總屏蔽耐熱用KC型補償電纜 |
KX補償導線產品型號及M稱
|
型號 |
M稱 |
|
KC-GB-VVP |
聚氯乙烯J緣和護套一般用普通JK分度號用補償型補償屏蔽線纜 |
|
ZR135-KC-GA-VVRP |
阻燃 |
|
KC-HA-FF46P |
氟塑料J緣和護套高溫用準確JK分度號用補償屏蔽線纜 |
|
KC-HA-FVP |
氟塑料J緣聚氯乙烯（ |
|
KC-HA-FGP |
氟塑料J緣硅橡膠護套高溫用準確JK分度號補償型補償屏蔽線纜 |
|
KC-HA-GGP |
硅橡膠J緣和護套高溫用準確JK分度號補償型補償屏蔽導線 |
|
KC-GA-VP3VP |
聚氯乙烯J緣對絞式鋁/塑復合分屏聚氯乙烯護套、銅絲編織總屏準確JK分度號補償型補償電纜 |
|
ZR135-KC-HA-FP2VP |
氟塑料J緣對絞式銅帶分屏阻燃 |
|
IA-KC-HA-FP3GP |
氟塑料J緣對絞式鋁/塑復合分屏硅橡膠護套銅絲編織總屏本安用高溫準確JK分度號補償型補償電纜 |
|
IA-KC-HA-FP2VRP22 |
氟塑料J緣對絞式銅帶分屏聚氯乙烯（ |
|
KX-GB-VVP |
聚氯乙烯J緣和護套一般用普通JK分度號用延伸型補償屏蔽線纜 |
|
ZR135-KX-GA-VVRP |
阻燃 |
|
KX-HA-FF46P |
氟塑料J緣和護套高溫用準確JK分度號用延伸型補償屏蔽線纜 |
|
KX-HA-FVP |
氟塑料J緣聚氯乙烯（ |
|
KX-HA-FGP |
氟塑料J緣硅橡膠護套高溫用準確JK分度號延伸型補償屏蔽線纜 |
|
KX-HA-GGP |
硅橡膠J緣和護套高溫用準確JK分度號延伸型補償屏蔽線纜 |
|
KX-HA-H4BFB |
|
|
KC-HA-H4BFB |
|
|
EX-HA-H4BFB |
|
|
KC-HA-H4BFB |
|
|
KX-GA-VP3VP |
聚氯乙烯J緣對絞式鋁/塑復合分屏聚氯乙烯護套、銅絲編織總屏準確JK分度號延伸型補償電纜 |
|
ZR135-KX-HA-FP2VP |
氟塑料J緣對絞式銅帶分屏阻燃 |
|
IA-KX-HA-FP3GP |
氟塑料J緣對絞式鋁/塑復合分屏硅橡膠護套銅絲編織總屏本安用高溫準確JK分度號延伸型補償電纜 |
|
IA-KC-HA-FP2VRP22 |
氟塑料J緣對絞式銅帶分屏聚氯乙烯（ |
注：1、如需其它型號產品，只需改寫型號的D一項，如JAEXH-GPGP等；
2、如需準確J，在原型號的D一項后加“S”如：JAKC-HS-GG等；
3、如需本安型和阻燃型產品，分別在原型號前加“IA”和ZRB、ZRC表示；
4、表中“P”為銅絲屏蔽，可改用：P1-鍍錫絲屏蔽，P2-銅帶屏蔽。
四、銷售范圍
|
標稱截面 |
導體結構㎜ |
銷售對數 |
|
|
根/單絲直徑 |
補償導線 |
補償電纜 |
|
|
0.5 |
7/0.30 |
1 |
2—24 |
|
1.0 |
7/0.43 |
||
|
1.5 |
7/0.52 |
||
|
2.5 |
19/0.41 |
2—19 |
|
五、補償導線外型尺寸及參考重量
|
芯數×截面mm2 |
成品電纜大外徑mm |
計算重量kg/km |
||||||
|
GG |
GPG |
FG |
FPG |
GG |
GPG |
FG |
FPG |
|
|
2×0.5 |
4.1×6.5 |
4.7×7.0 |
3.6×5.5 |
4.3×6.2 |
32 |
53 |
30 |
48 |
|
2×1.0 |
4.7×7.6 |
5.4×8.1 |
4.3×6.6 |
4.9×7.2 |
48 |
73 |
46 |
67 |
|
2×1.5 |
5.5×8.7 |
6.1×9.4 |
4.8×7.4 |
5.5×8.1 |
70 |
98 |
61 |
84 |
|
2×2.5 |
6.4×10.5 |
7.1×11.2 |
5.8×9.1 |
6.4×9.8 |
103 |
139 |
95 |
124 |
